Recording a Live Lecture using ReView

This guide explains how you can use ReView to capture your live lectures or classroom activity.

Before you record a lecture, please remember to:

  • notify the students that the lecture will be recorded and display the ReView Recording Notice before the start of a capture.  Click here to download the notice templates.
  • inform students when (e.g. after 48 hours ) the recording will be available for viewing
  • keep the web camera focused on you/projector screen and ensure students are not captured
  • stand close to boundary microphone, and project your voice when you are away from the microphone
  • pause, if the content is not suitable for capture
  • pause the recording during discussions and question and answer session

Recording a Lecture

  1. Login to Blackboard and select the module that you would like to record and save the lecture in.
  2. Once you have selected a module, navigate to open the ReView Video Library. If the library is not visible, go to Course Tools under Control Panel and click ReView Video Library link.
    configure

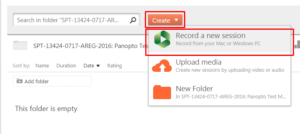

  3. To record a session, click the Create button and select Record a new session from the drop down.
    clickcreate_launch
  4. This will prompt a pop-up to launch the recorder. Click Launch Panopto button. Depending on the browser click Launch Application / Allow on pop-up window that follow this.launch
  5. Under the Session Settings, the Folder will be will selected for you. This will be the module that you launch the recorder from.
  6. Name the session.
    namesession
  7. Select the appropriate Primary Sources.   For Video select a web camera from the drop down menu and for Audio select the boundary microphone Microphone (USB audio CODEC) and adjust the volume slider if required.
    Note: If you are capturing Video – web camera feed, plug it in before launching the recorder.
  8. Set Quality to High.  Select Capture Computer Audio if you choose to record any audio that plays on your computer.
    primarysource_lecturerecording
  9. Once you have selected your video and audio inputs, select the relevant Secondary Sources.  To record your slide presentation, tick Capture PowerPoint and if you wish to record the screen activity on the lectern, tick Capture Main Screen. The software will automatically detect any additional screen for example, a second monitor.  You may also choose to capture additional video/web camera feed by clicking Add Another Video Source.
    secondarysources
  10. Adjust the Resolution to the highest setting from the dropdown menu and set the fps to 15 and click Apply.
    resolution
  11. There are several ways to start the recording.  You can choose to launch your PowerPoint slides from the recorder. In order to this, click Open Presentation.  Browse for your file and click Open.  This will prompt a message to start the recording automatically. Click Yes, and this will launch your PowerPoint to presentation mode and start the recording for you. You can proceed with your lecture and advance your slides as you normally would.
    launchppt
  12. The second option is to browse and open your PowerPoint slides as you normally would and manually click the Record button. This will launch the PowerPoint slides to presentation mode.
    recordbutton
  13. If there are segments within the slides or the presentation not suitable for capture, or during discussions you can pause the recording. In order to do this, click the recorder icon on the task bar to prompt the software and click the Pause button.
  14. If you have recorded parts of the presentation that you do not wish to share with your students, you can edit the video later. The following guide explains how to edit your ReView recordings.
  15. When you have reached the end of your presentation, click Stop.
    stoppause
  16. This will prompt a Recording Complete window. Click Upload.
    upload_delete
  17. You will be taken to the Manage Recordings page, where you will be able to see the list of sessions that have been recorded offline, are uploading, or have completed uploading. At this point you can choose to log out of Blackboard and the computer.
  18. The uploading process will continue in the background.
    recording_status

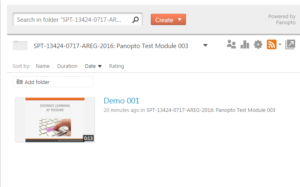

  19. The session will automatically be added to the selected module and the publishing and processing duration may vary, depending on the length of the recording.  You can choose to set adaptive release for a recording to allow some time for editing. Coming soon: How to set adaptive release for ReView recording.]
    NOTE: Please remember to notify students when the recording will be available for viewing.
    recording_module
  20. The following guides can help you manage your lecture capture and your other ReView recordings:

Technical Support

If you require any technical support on the day, contact the ITACS Service Desk team on ext. 2220 or email ithelp@tees.ac.uk

Equipment and Software Availability

All General Purpose Teaching (GPT) rooms and Lecture Theatres (LT) are equipped with the lecture recording software and a boundary microphone, which is has a pick up range of approximately 20 feet. If you would like to capture video, please request a web camera from your School/Department. The following link provides a list of AV equipment available in GPT rooms across campus.

boundary_mic

NOTE: Please test the equipment in the venue that you will be recording to ensure everything is in a working order before the actual recording.

If you require a bespoke setup for example use of multiple cameras for recording a demonstration, please get in touch with a member of staff from the Learning and Teaching Enhancement team for support via elearning@tees.ac.uk.

Scheduled Recording

A select number of lecture theatres are installed with a high quality camera and has the facility for scheduled/automated recording. Please contact ITACS if you would like to use this facility. Find out more about the Gold Rooms.
